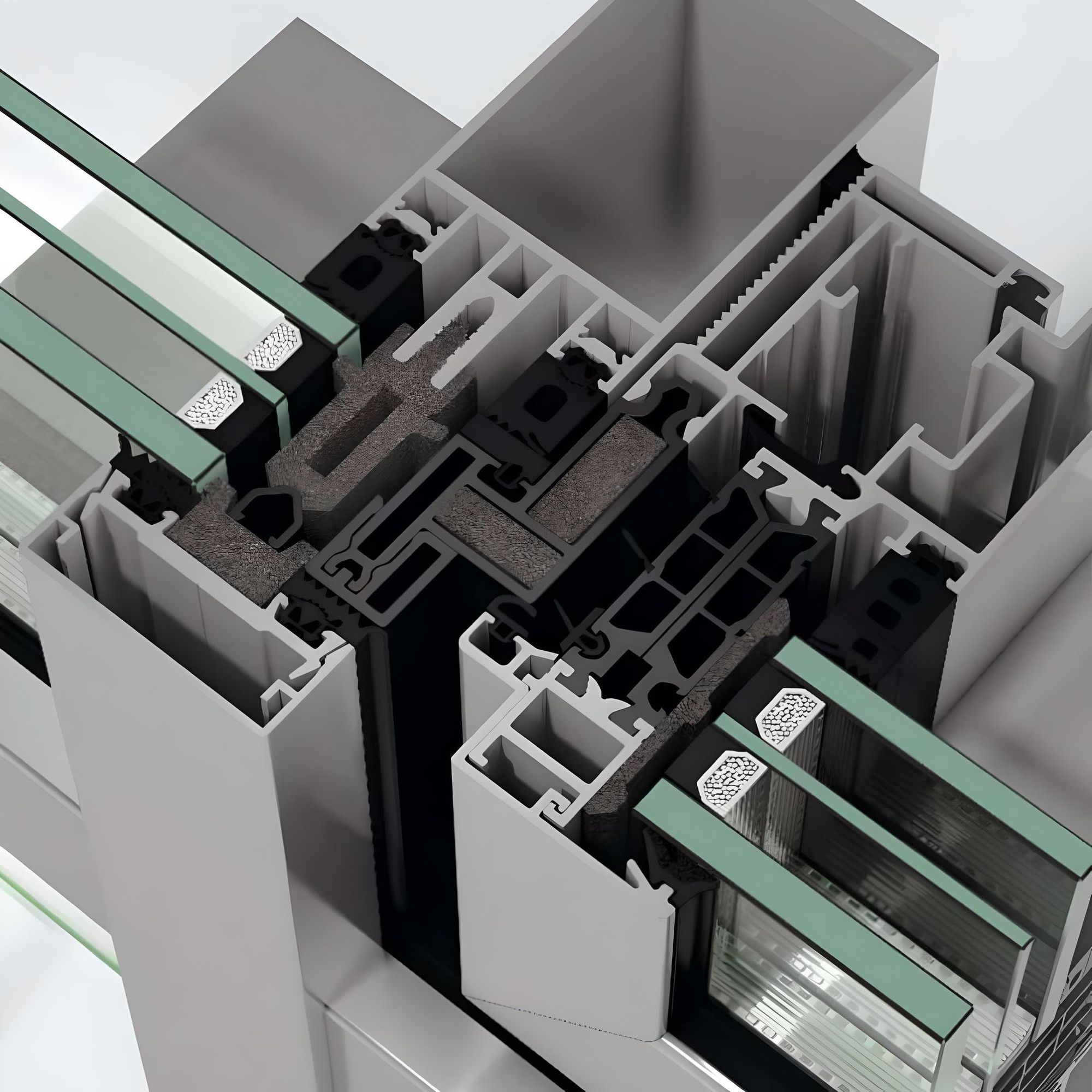

AWS 114 SG - Semi Unitized System
The Unitized curtain wall system uses large factory-made glass panels installed on-site with cranes. The Stick system assembles aluminum bars on-site, cut at the factory, and is known for its accessibility and simplicity. The Semi-Unitized system combines factory-made panels with on-site assembly. Stick systems are popular for their flexibility and ease of installation.
Technical Information
| Feature | Details |
| Thermal Uw value | Uf value ≥ 1.8 W/(m²K) |
| Water tightness | Up to 1200 Pa |
| Air tightness | Up to 600 Pa |
| Wind load | Wind load resistance up to 2000 Pa |
| Sound Reduction | Up to 43 dB Rw Acoustic Testing |
| Burglar Resistant (if any) | Not specified |
| Glass Range | Up to 44 mm Glass Thickness |
| Max vent dim | 2,700 x 2,500 mm or 1,500 x 3,600 mm (Projected Top Hung) / 2,200 x 2,500 mm or 1,300 x 3,600 mm (Parallel opening) |
| Max vent weight | 250 kg for Top Hung, 200 kg for Parallel opening |
